Single & Triple Piston Scalers
Additional Information
Piston Scalers are used for many different surface preparation projects. They can be used to remove heavy rust, scale, paint or industrial coatings from metal surfaces. They can also be used to rough concrete prior to resurfacing. The pistons used for these applications range from standard steel (TX-00146) to carbide tipped (TX-00150) or REXALLOY ®™ which is a solid cobalt alloy (TX-00151).
Please note, solid cobalt alloy pistons (TX-00151) should not be used for concrete surface preparations. It has been found that silica in concrete causes heat buildup in the REXALLOY ®™ pistons which in turn causes the pistons to wear more rapidly. REXALLOY®™ pistons should ONLY be used on metal surfaces and primarily for their spark resistance.
REXALLOY ®™ pistons are spark resistant as per parameters used by O.S.H.A. in reference to U.S. Naval Report No. NGF-T-1-157, NAVORD 5205, agreeing that “ANY” spark produced from impact with this REXALLOY ®™ part will be a cold spark not conductive of ignition in hazardous enviornments. They are non-magnetic, rust proof and carbide hard.
New OSHA Regulations for Dust Collection (Standard 1926.1153) will start being enforced September 23, 2017. The regulations apply to all occupational exposures of respirable crystalline silica in construction work. Exposures to respirable crystalline silica occur when tools such as chipping hammers, rivet busters, paving breakers (Jackhammers) and hydraulic boom mounted breakers are used on concrete, brick, block stone, mortar and other materials that contain crystalline silica.
The Texas Pneumatic Dust Collection Systems are designed to comply with the standard. Our TX-DCS3 will work for all chipping hammers, rivet busters and hand held paving breakers. The TX-DCS6 is for larger applications such as boom mounted hydraulic breakers.
Single & Triple Piston Scalers
Additional Information
Piston Scalers are used for many different surface preparation projects. They can be used to remove heavy rust, scale, paint or industrial coatings from metal surfaces. They can also be used to rough concrete prior to resurfacing. The pistons used for these applications range from standard steel (TX-00146) to carbide tipped (TX-00150) or REXALLOY ®™ which is a solid cobalt alloy (TX-00151).
Please note, solid cobalt alloy pistons (TX-00151) should not be used for concrete surface preparations. It has been found that silica in concrete causes heat buildup in the REXALLOY ®™ pistons which in turn causes the pistons to wear more rapidly. REXALLOY®™ pistons should ONLY be used on metal surfaces and primarily for their spark resistance.
REXALLOY ®™ pistons are spark resistant as per parameters used by O.S.H.A. in reference to U.S. Naval Report No. NGF-T-1-157, NAVORD 5205, agreeing that "ANY" spark produced from impact with this REXALLOY ®™ part will be a cold spark not conductive of ignition in hazardous enviornments. They are non-magnetic, rust proof and carbide hard.
New OSHA Regulations for Dust Collection (Standard 1926.1153) will start being enforced September 23, 2017. The regulations apply to all occupational exposures of respirable crystalline silica in construction work. Exposures to respirable crystalline silica occur when tools such as chipping hammers, rivet busters, paving breakers (Jackhammers) and hydraulic boom mounted breakers are used on concrete, brick, block stone, mortar and other materials that contain crystalline silica.
The Texas Pneumatic Dust Collection Systems are designed to comply with the standard. Our TX-DCS3 will work for all chipping hammers, rivet busters and hand held paving breakers. The TX-DCS6 is for larger applications such as boom mounted hydraulic breakers.
Products List
Showing all 18 results
-
S1
Single Piston Scaler$600.00 -
S1-150
Single Piston Scaler w/ TX-00150 Carbide Tipped Piston$770.00 -
S1-151
Single Piston Scaler w/ TX-00151 Piston$770.00 -
S1-AC
Single Piston Scaler w/ Air Cock Handle$600.00 -
S1-AC-151
Single Piston Scaler w/ Air Cock Handle & TX-00151 Piston$770.00 -
S1-BH
Single Piston Scaler w/ Bent Handle$640.00 -
S1-BH-151
Single Piston Scaler w/ Bent Handle & TX-00151 Piston$815.00 -
S1-BH-AC
Single Piston Scaler w/ Bent Handle & Air Cock Handle$640.00 -
S1-BH-AC-151
Single Piston Scaler w/ Bent Handle, Air Cock Handle & TX-00151 Piston$815.00 -

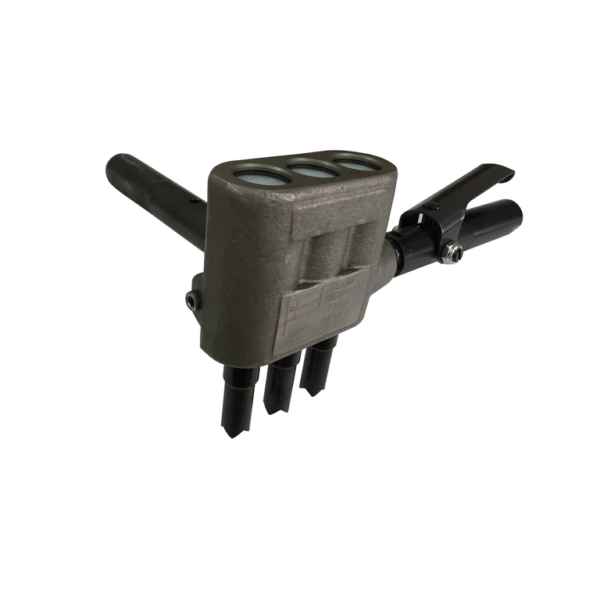

T3
Triple Piston Scaler$775.00 -

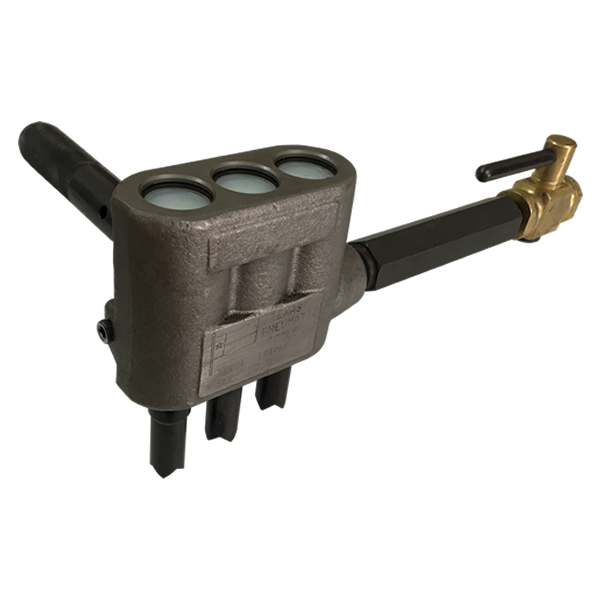

T3-AC
Triple Piston Scaler w/ Air Cock Handle$775.00 -
T3-150
Triple Piston Scaler w/ TX-00150 Pistons$1,285.00 -
T3-151
Triple Piston Scaler w/ TX-00151 Pistons$1,285.00 -
T3-AC-151
Triple Piston Scaler w/ Air Cock Handle & TX-00151 Pistons$1,285.00 -
T3-BH
Triple Piston Scaler w/ Bent Handle$820.00 -
T3-BH-151
Triple Piston Scaler w/ Bent Handle & TX-00151 Pistons$1,330.00 -

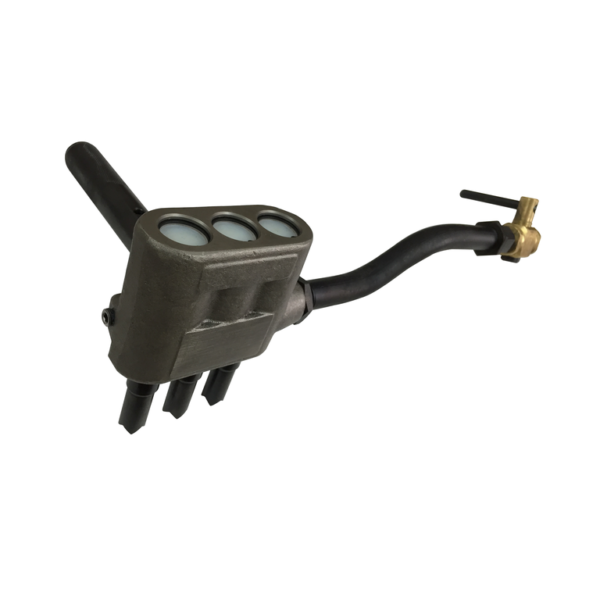

T3-BH-AC
Triple Piston Scaler w/ Bent Handle & Air Cock Handle$1,330.00 -
T3-BH-AC-151
Triple Piston Scaler w/ Bent Handle, Air Cock Handle & TX-00151 Pistons$1,330.00
