Air Ducting
Air Movement Product Line Sheet
Our air ducting (TX-SAC-N-GO) is available in five sizes, 8″, 12″, 16″, 20″ and 24″ diameters. The standard ducting is made of single-ply, PVC coated polyester fabric with a spring steel wire helix and external PVC wear strip. Electrically conductive ducting has carbon impregnated into the PVC coating and has a ground wire that runs the length of the duct. The ground wire will safely discharge any potential static buildup. The ducting was tested to UL 94 Standard and certified as fire retardant.
See Our Air Ducting Products »
The ducting has its own storage bag attached to the cuff end. Simply attach the cuff end to the air movement device and pull the opposite end from the bag and place into position. When finished, the hose can easily be put back into the bag for storage and carrying. Our design allows multiple bags to be combined for long duct runs. No additional connectors are needed. The end of one hose can be inserted into the cuff end of another. All ducting can be placed on either end of an air mover or fan. The hose can be used for supply or suction.
The 8″ ducting is designed to be used with the TX-3AM, TX-3AMS, TX-3AM-P, & TX-3AMS-P. It can also be used with the Prime Air 8″ Tornado Blowers.
The 12″ ducting is designed to be used with the TX-6AM, TX-6AM-P, or the TX-JF12 Jet Fan. It can also be used with the Prime Air 12″ Tornado Blowers.
The 16″ ducting is designed to be used with the TX-8AM, TX-8AM-P, TX-10AM, TX-10AM-P or the TX-JF16 Jet Fan. It can also be used with the Prime Air 16″ Tornado Blowers.
The 20″ ducting is designed to be used with the TX-JF20. The 24″ ducting is designed to be used with the TX-JF24.
Air Ducting
Air Movement Product Line Sheet
Our air ducting (TX-SAC-N-GO) is available in five sizes, 8", 12", 16", 20" and 24" diameters. The standard ducting is made of single-ply, PVC coated polyester fabric with a spring steel wire helix and external PVC wear strip. Electrically conductive ducting has carbon impregnated into the PVC coating and has a ground wire that runs the length of the duct. The ground wire will safely discharge any potential static buildup. The ducting was tested to UL 94 Standard and certified as fire retardant.
See Our Air Ducting Products »
The ducting has its own storage bag attached to the cuff end. Simply attach the cuff end to the air movement device and pull the opposite end from the bag and place into position. When finished, the hose can easily be put back into the bag for storage and carrying. Our design allows multiple bags to be combined for long duct runs. No additional connectors are needed. The end of one hose can be inserted into the cuff end of another. All ducting can be placed on either end of an air mover or fan. The hose can be used for supply or suction.
The 8" ducting is designed to be used with the TX-3AM, TX-3AMS, TX-3AM-P, & TX-3AMS-P. It can also be used with the Prime Air 8" Tornado Blowers.
The 12" ducting is designed to be used with the TX-6AM, TX-6AM-P, or the TX-JF12 Jet Fan. It can also be used with the Prime Air 12" Tornado Blowers.
The 16" ducting is designed to be used with the TX-8AM, TX-8AM-P, TX-10AM, TX-10AM-P or the TX-JF16 Jet Fan. It can also be used with the Prime Air 16" Tornado Blowers.
The 20" ducting is designed to be used with the TX-JF20. The 24" ducting is designed to be used with the TX-JF24.
Products List
Showing all 10 results
-
TX-JF2035
20" Adapter Plate For Use With 20" Ducting$572.10 -
TX-JF2035-16
20" Adapter Plate For Use With 16" Ducting$572.10 -

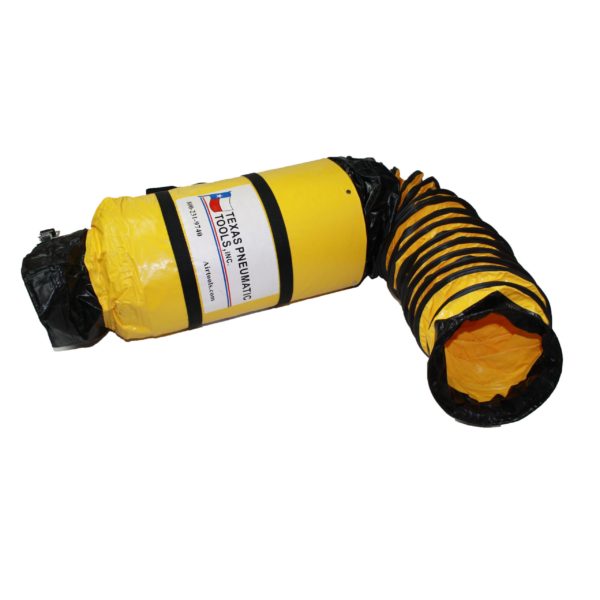

TX-SAC-N-GO-8
8" Ducting w/ Attached Storage Bag$375.00 -

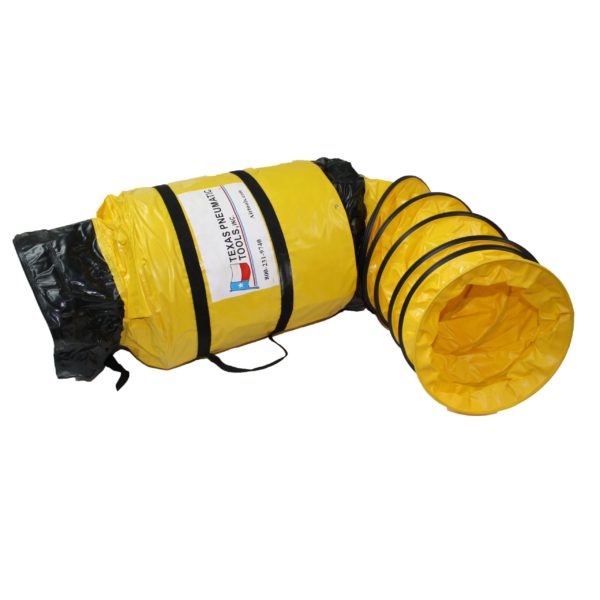

TX-SAC-N-GO-12
12" Ducting w/ Attached Storage Bag$435.00 -

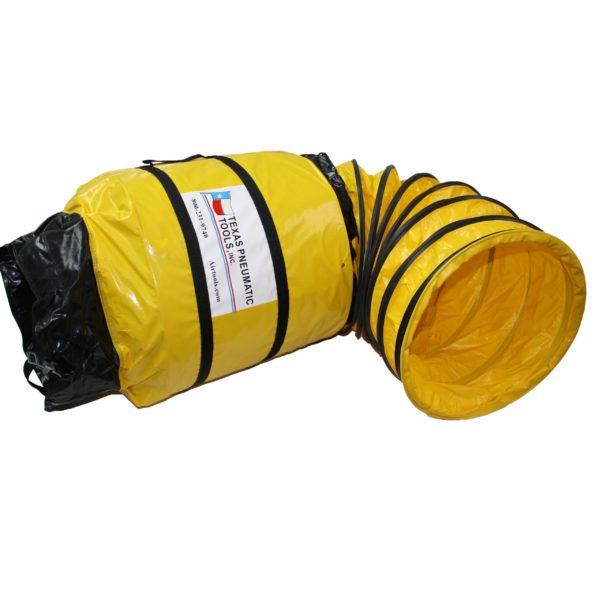

TX-SAC-N-GO-16
16" Ducting w/ Attached Storage Bag$525.00 -

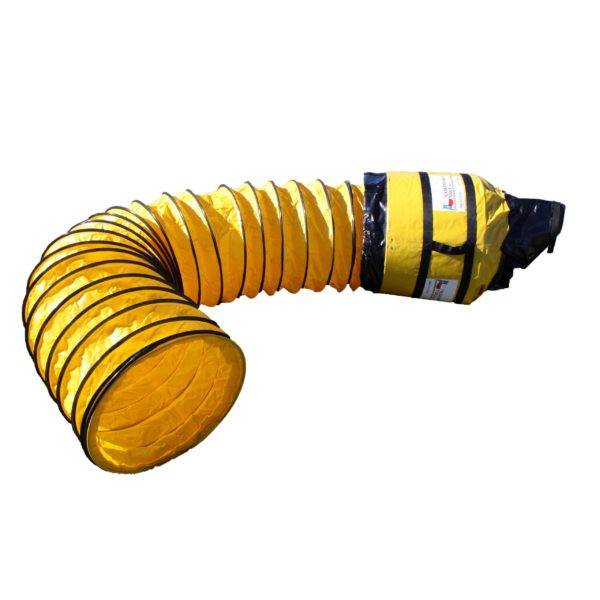

TX-SAC-N-GO-20
20" Ducting w/ Attached Storage Bag$725.00 -
TX-SAC-N-GO-24
24" Ducting w/ Attached Storage Bag$895.00 -

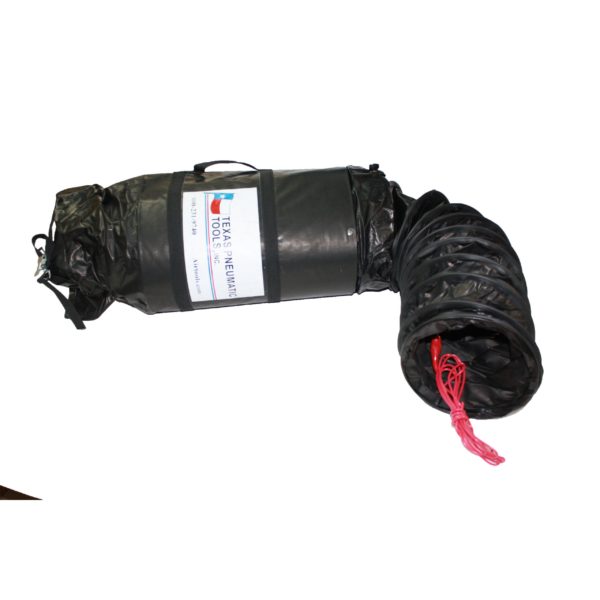

TX-SAC-N-GO-8-C
8" Electrically Conductive Ducting w/ Attached Storage Bag.$725.00 -

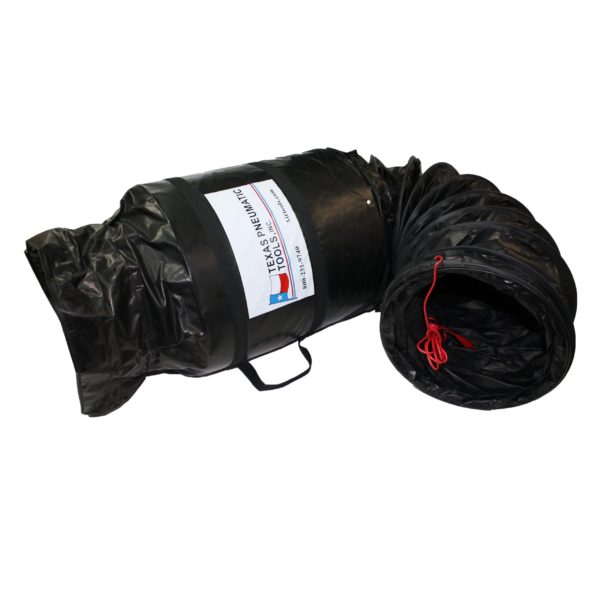

TX-SAC-N-GO-12-C
12" Electrically Conductive Ducting w/ Attached Storage Bag$860.00 -

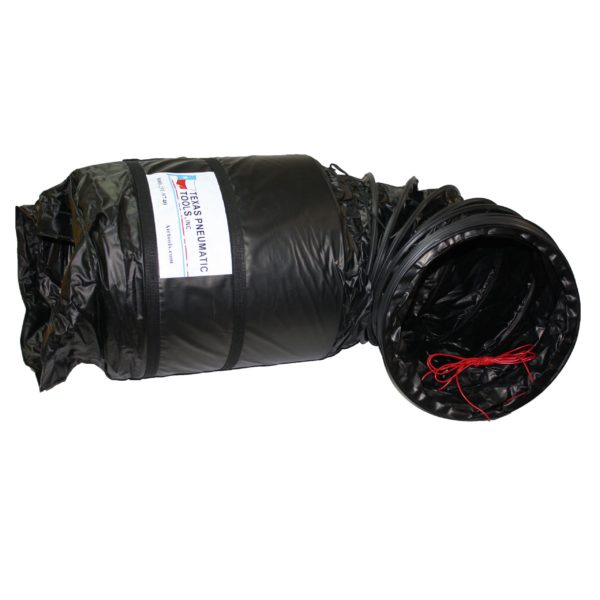

TX-SAC-N-GO-16-C
16" Electrically Conductive Ducting w/ Attached Storage Bag$1,050.00
