TX-8/2-½” & TX-8-4”

Price:

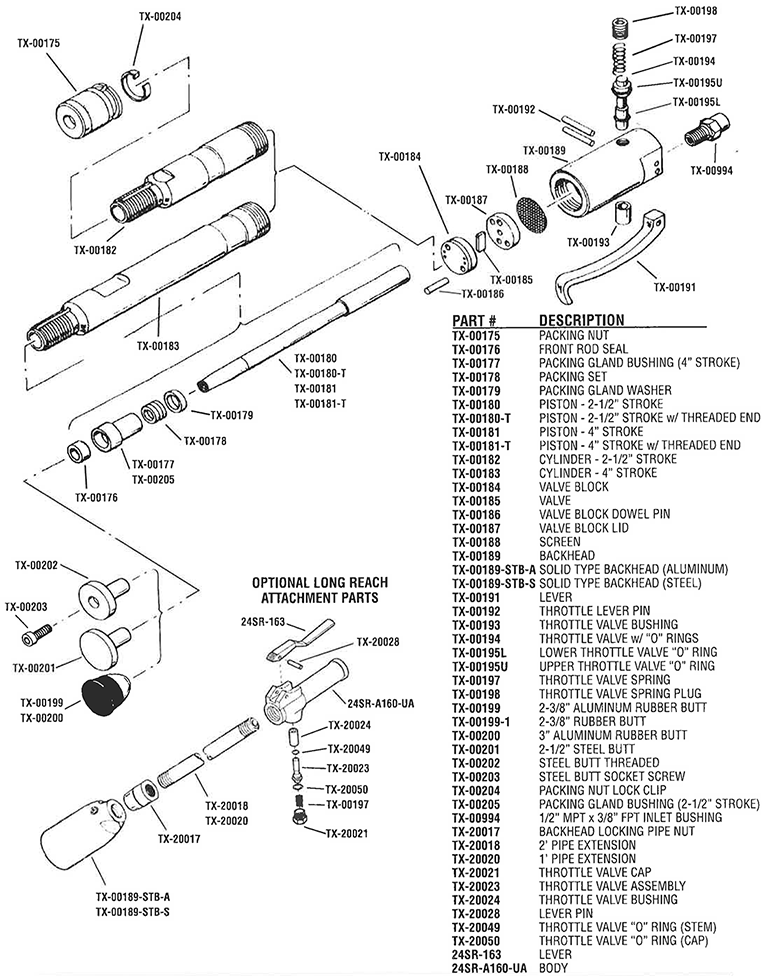

Product #	Product Name	Price	Qty.
TX-00189	Backhead	Price: $128.65	TX-00189 quantity
TX-00191	Lever	Price: $42.30	TX-00191 quantity
TX-00192	Throttle Lever Pin	Price: $2.90	TX-00192 quantity
TX-00193	Throttle Valve Bushing	Price: $13.30	TX-00193 quantity
TX-00194	Throttle Valve W/"O" Ring	Price: $22.55	TX-00194 quantity
TX-00195L	Lower Throttle Valve "O" Ring	Price: $1.10	TX-00195L quantity
TX-00197	Throttle Valve Spring	Price: $1.30	TX-00197 quantity
TX-00198	Throttle Valve Spring Plug	Price: $6.50	TX-00198 quantity
TX-00203	Steel Butt Socket Screw	Price: $1.40	TX-00203 quantity
TX-00204	Packing Nut Lock Clip	Price: $14.95	TX-00204 quantity
TX-00205	Packing Gland Bushing (2-1/2"Stroke)	Price: $47.40	TX-00205 quantity
TX-00994	1/2" MPT x 3/8" FPT Inlet Bushing	Price: $5.75	TX-00994 quantity
24SR-163	Throttle Lever	Price: $27.70	24SR-163 quantity
TX-00175	Packing Nut	Price: $38.85	TX-00175 quantity
TX-00176	Rod Front Seal	Price: $10.05	TX-00176 quantity
TX-00177	Packing Gland Bushing (4"Stroke)	Price: $28.20	TX-00177 quantity
TX-00178	Packing Set (TX8)	Price: $22.55	TX-00178 quantity
TX-00179	Packing Gland Washer	Price: $14.05	TX-00179 quantity
TX-00180	Piston - 2 1/2" Stroke	Price: $112.60	TX-00180 quantity
TX-00180-T	Piston With Thread 2-1/2" Stroke	Price: $112.60	TX-00180-T quantity
TX-00181	Piston 4" Stroke	Price: $144.30	TX-00181 quantity
TX-00182	Cylinder - 2-1/2" Stroke	Price: $387.65	TX-00182 quantity
TX-00183	Cylinder 4" Stroke	Price: $500.25	TX-00183 quantity
TX-00184	Valve Block	Price: $89.90	TX-00184 quantity
TX-00185	Valve	Price: $6.75	TX-00185 quantity
TX-00186	Valve Block Dowel Pin	Price: $2.35	TX-00186 quantity
TX-00187	Valve Block Lid	Price: $27.15	TX-00187 quantity
TX-00188	Screen	Price: $2.45	TX-00188 quantity
TX-00199	2-3/8" Aluminum Rubber Butt (802 Taper)	Price: $90.15	TX-00199 quantity
TX-00199-1	2-3/8" Rubber Butt W/ Steel Insert	Price: $90.15	TX-00199-1 quantity
TX-00200	3" Aluminum Rubber Butt (802 Taper)	Price: $90.15	TX-00200 quantity
TX-00201-BS	2-1/2" Steel Butt w/ 802 Taper for Butt Screw	Price: $90.15	TX-00201-BS quantity
TX-20017	Backhead Locking Pipe Nut (3/4" Npt)	Price: $42.30	TX-20017 quantity
TX-20018	2' Pipe Extension (3/4" MPT)	Price: $67.10	TX-20018 quantity
TX-20019	Extension Coupling	Price: $15.50	TX-20019 quantity
TX-20021	Throttle Valve Cap	Price: $23.35	TX-20021 quantity
TX-20023	Throttle Valve Assembly	Price: $37.90	TX-20023 quantity
TX-20024	Throttle Valve Bushing	Price: $37.15	TX-20024 quantity
TX-20028	Lever Pin	Price: $2.40	TX-20028 quantity
TX-20049	Throttle Valve "O" Ring (Stem)	Price: $1.30	TX-20049 quantity
TX-20050	Throttle Valve "O" Ring (Cap)	Price: $1.20	TX-20050 quantity
24SR-A160-UA	Small Snap Handle (Unassembled)	Price: $143.10	24SR-A160-UA quantity
TX-00195U	Throttle Valve "O" Ring	Price: $1.00	TX-00195U quantity

Add to Quote

Description

Bench Rammers

Downloads

Bench Rammer Service & Operations Manual Rammers Brochure

TX-8/2-½” & TX-8-4”
