Series 1, 2, 3, 4 and W1, W2 , W3, W4

Price:

All replacement parts listed under other manufacturers are Texas Pneumatic substitute parts. The manufacturers part numbers are listed here for reference only.

get_the_title();
  Product # Product Name Price Qty.
24SR-207 Pressure Spring Price: $10.30
AR-274 Throttle Valve Spring Price: $1.45
B01-19B Round Front End Bushing Price: $18.65
B01-7B Hex Front End Bushing Price: $19.70
C-134 Throttle Lever (Ir) Price: $38.30
H02-65 Push Pin Bushing Price: $9.85
H-282 7/8"- 24 Thrd Permanent Bushing Price: $5.50
H3R-203 Rubber Bumper Price: $3.20
H3R-31 Upper Washer (IR 2 Pc/Set 300 Retainer) Price: $20.75
HH-266 Throttle Valve Plug Price: $6.10
HH-51 Throttle Valve Spring Price: $2.80
HH-602 Throttle Valve W/ "O" Ring Price: $12.75
HH-602A Throttle Valve Ball Price: $7.25
HH-603 Throttle Valve Bushing Price: $18.00
HH-603A Throttle Valve Bushing Price: $19.85
HH-604 Push Pin Price: $9.60
HH-604A Push Pin Price: $13.40
HHW1-213 Lower Washer (IR 2 Pc/Set Hhw1-300) Price: $13.15
HHW1-300 Retainer (Threaded Brl) Wide Price: $81.95
HHW1-A300 Retainer Assembly (IR CH) Price: $112.60
R000A2-103 Retainer Ring Price: $1.25
H02-74 Stop Pin | Texas Pneumatic Tools, Inc. Stop Pin Price: $1.70
9091SP Pipe Thread Swivel and Hose Barb Assembly | Texas Pneumatic Tools, Inc. 1/2" Pipe Thread Swivel X 1/2" Hose Barb Assembly Price: $24.35
9091 Thread Swivel and Hose Barb Assembly | Texas Pneumatic Tools, Inc. 7/8"-24 Thread Swivel x 1/2" Hose Barb Assembly Price: $24.35
C-15 Throttle Lever Pin | Texas Pneumatic Tools, Inc. Throttle Lever Pin Price: $1.85
Add to Quote

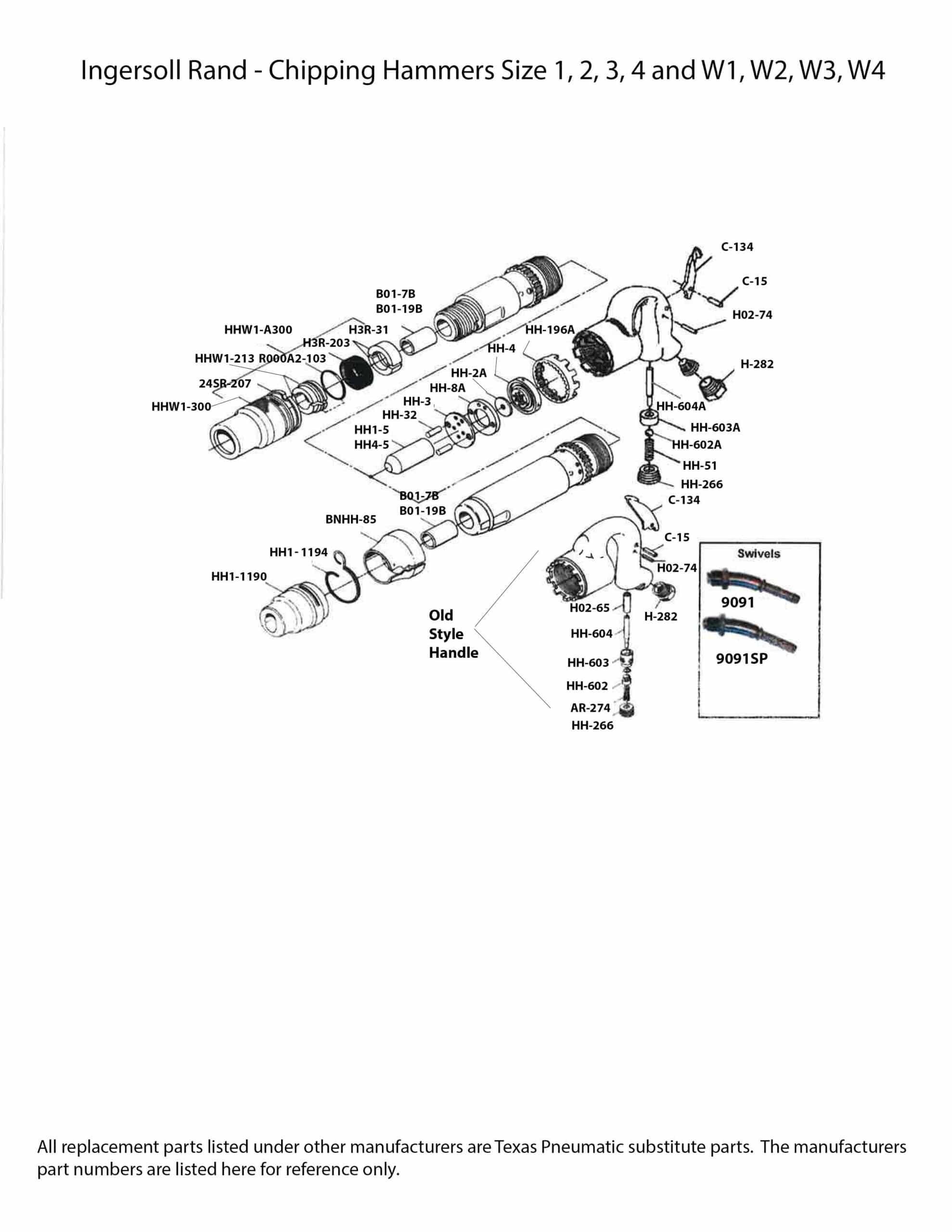

Ingersoll Rand – Chipping Hammers Size 1, 2, 3, 4 and W1, W2 , W3, W4
