Description

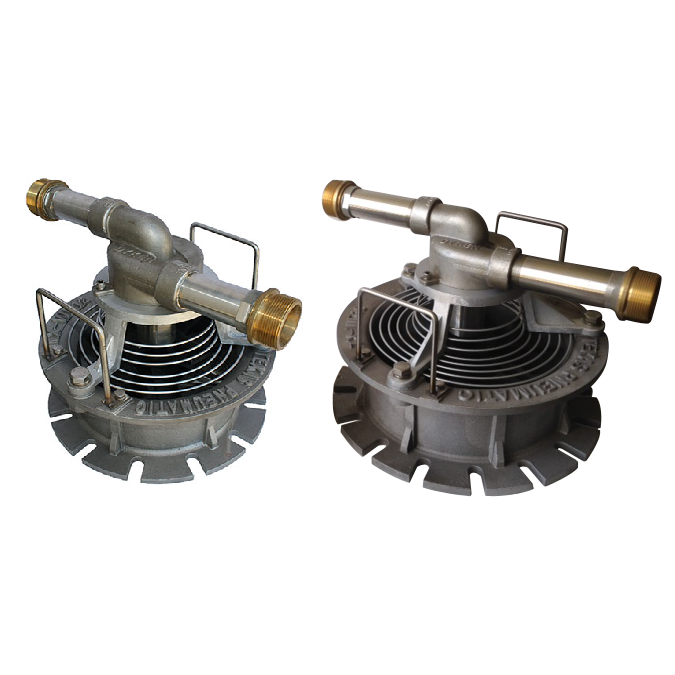

12″ Water Driven fan with a stainless steel water motor and 2-1/2″ NST (male) connectors.
- Butterworth Flange for mounting.
- Used for degassing ship holds or tanks.
- Stainless steel water motor housing.
- Brass impeller.
- Standard unit supplies air into tank.
- Optional fan blade for exhausting air from tanks.
- Heat treated to T6 aircraft aluminum specifications.
- 150 PSI maximum working pressure
Specifications:
- Butterworth Flange Diameter = 18″
- Weight = 56 lbs.
- Water Motor Inlet/Outlet = 2″ FPT
- Water Hose Connector = 2-1/2″ NST (male)
- Max. Water Pressure = 150 PSI
- Net shipping weight = 62 lbs.
